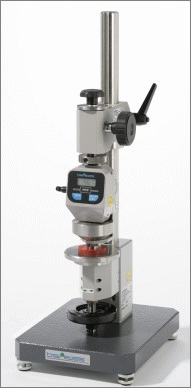

IRHD Compact III




Digital manual Hardness Tester



Model: IRHD Compact III



For measurement of Shore Hardness according to:

DIN ISO 48, NF T 46-003, ASTM D 1415, BS 903, Part. A26



Key Advantages of the IRHD Compact III

  • If required, the customer can easily change the Intender IRHD M / IRHD N

  • Digital system with high accuracy

  • For calibration, only the measuring device (not the complete stand) needs to be sent

Measuring Method:

IRHD M (micro)

IRHD N (normal



Resolution:

0.1 IRHD M

0.1 IRHD N



Application:

Measurement of soft rubber, highly elastic material and material that can be plastically deformed



Minimum Material Thickness for IRHD M:

0.6 to 5 mm



Minimum Material Thickness for IRHD N:

6 to 10 mm





Optional Accessories:



Barofix



Centering device for the fast centering and

fixing of O-rings. For an O-ring thickness

of 0.8 mm to 5 mm or 4 mm to 20 mm



Barofix II





Automatic centering device

for the fast centering of

O-rings with a thickness of

0.8 to 5 mm or 4 to 20 mm



Centrofix





For the fast centering of

tube-like material, e.g. for

rubber hoses



Please note that the devices "Barofix" and "Centrofix"

can easily be fitted on top of the measuring table of the IRHD Compact III.

If you have both, you can change them easily

depending on the measuring task you have on hand.





Test certificate

A common guide for the standardized procedure of the proof of quality securing has been established by the ISO 9000. If a company is going to be certified according to ISO 9000., it is obliged to control or having controlled all its measures periodically in the scope of the surveillance of measures. This kind of test is documented by us as the manufacturer.
Thus, we as the manufacturer of the hardness testers and you as the operator are able to prove, that the prescribed standards have been applied completely

Calibration Certificate

As mentioned above, for the calibration you just need to send us the measuring head, not the complete system. Roteq will handle for you the packing/transport/insurance so that you get the items back in time with the calibration certificate as required by you.

Key Benefits

  • Professional Equipment form world's leading manufacturer
  • DKD Calibration available (official German Calibration Laboratories)
  • Best and most accurate equipment, setting the world's Standard.
