Pressure Transducers




Piezo-Electric High Pressure Transducers



GP2  for up to 2000 bar (200 MPa)

GP6  for up to 6000 bar (600 MPa)

GP8  for up to 8000 bar (800 MPa)

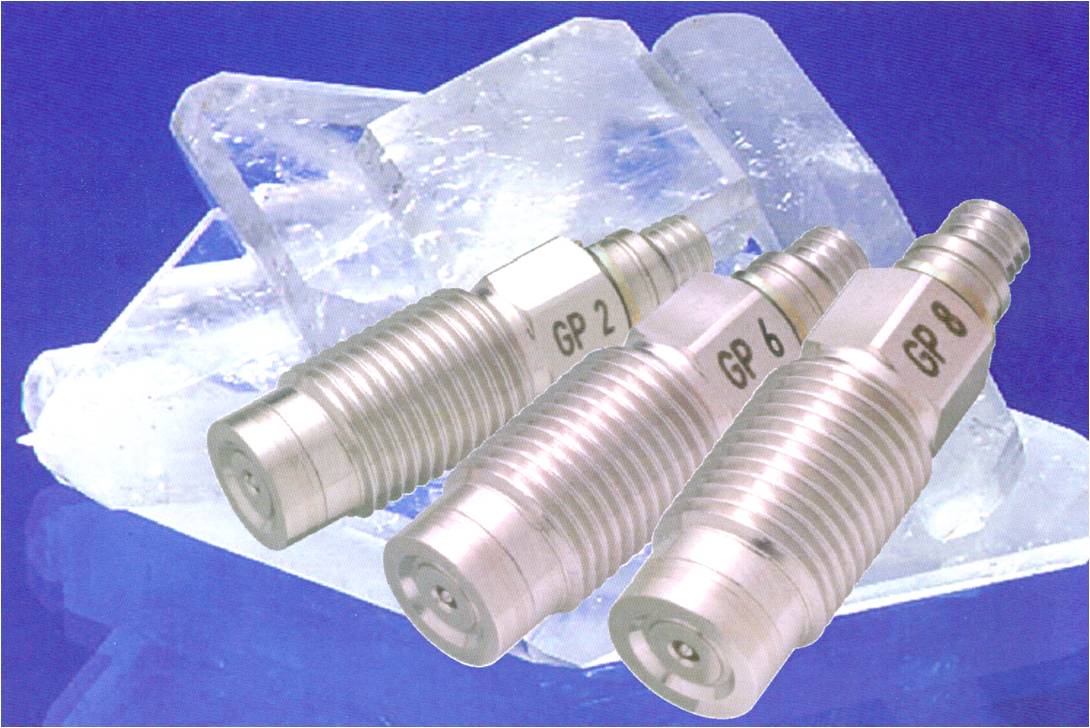

Piezo-Electric High Pressure Transducer



Transducer Dimensions (in mm):





GP 2

GP 6

GP 8

Measuring Range

bar  (MPa)

2000 (200)

6000 (600)

8000 (800)

Overload Pressure

bar  (MPa)

2400 (240)

6400 (640)

8400 (840)

Sensitivity (nom.)

pC/bar (pC/MPa)

5.5 (55)

3 (30)

2.5 (25)

Linearity

%

≤ 0.5

≤ 0.5

≤ 0.5

Operating temperature range

C

- 50 . 200

- 50 . 200

- 50 . 200

Temperature coefficient of sensitivity

% /  C

- 0.01

- 0.01

- 0.01

Insulation resistance at 20 C

Ω

≥ 1013

≥ 1013

≥ 1013

Natural frequency

kHz

≥ 240

≥ 240

≥ 240

Rise Time

μs

≤ 1

≤ 1

≤ 1

Acceleration sensitivity:               axial

bar / g (MPa/g)

0.002 (0.0002)

< 0.002 (0.0002)

0.002 (0.0002)

                                                      radial

bar / g (MPa/g)

0.005 (0.0005)

< 0.005 (0.0005)

0.005 (0.0005)

Shock resistance:                          axial

g

25000

25000

25000

                                                      radial

g

10000

10000

10000

Mounting torque

Nm

20

20

20

Mounting thread

mm

M 10 x 1

M 10 x 1

M 10 x 1

Weight

grams

12

12

12

Cable connector



Microdot 10-32UNF

Microdot 10-32UNF

Microdot 10-32UNF

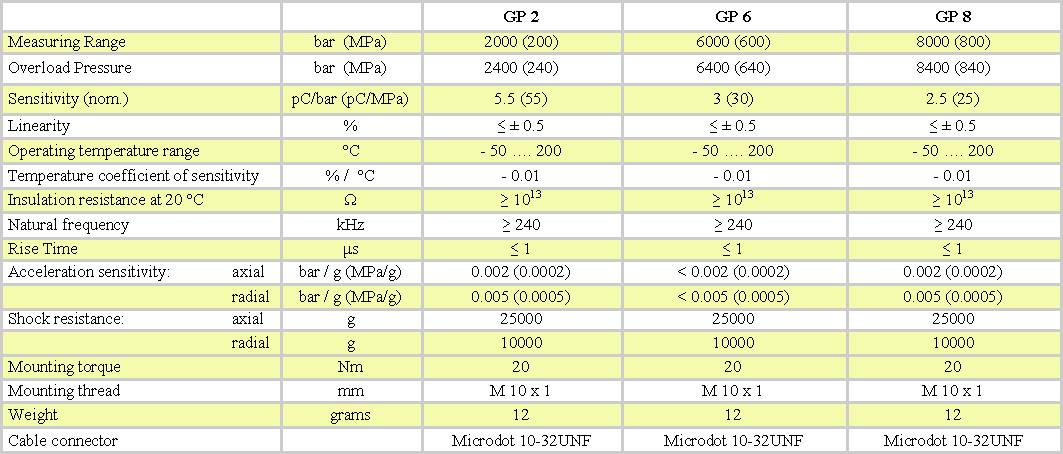

Transducer Details





GP 2

GP 6

GP 8

Measuring Range

bar  (MPa)

2000 (200)

6000 (600)

8000 (800)

Overload Pressure

bar  (MPa)

2400 (240)

6400 (640)

8400 (840)

Sensitivity (nom.)

pC/bar (pC/MPa)

5.5 (55)

3 (30)

2.5 (25)

Linearity

%

≤ 0.5

≤ 0.5

≤ 0.5

Operating temperature range

C

- 50 . 200

- 50 . 200

- 50 . 200

Temperature coefficient of sensitivity

% /  C

- 0.01

- 0.01

- 0.01

Insulation resistance at 20 C

Ω

≥ 1013

≥ 1013

≥ 1013

Natural frequency

kHz

≥ 240

≥ 240

≥ 240

Rise Time

μs

≤ 1

≤ 1

≤ 1

Acceleration sensitivity:               axial

bar / g (MPa/g)

0.002 (0.0002)

< 0.002 (0.0002)

0.002 (0.0002)

                                                      radial

bar / g (MPa/g)

0.005 (0.0005)

< 0.005 (0.0005)

0.005 (0.0005)

Shock resistance:                          axial

g

25000

25000

25000

                                                      radial

g

10000

10000

10000

Mounting torque

Nm

20

20

20

Mounting thread

mm

M 10 x 1

M 10 x 1

M 10 x 1

Weight

grams

12

12

12

Cable connector



Microdot 10-32UNF

Microdot 10-32UNF

Microdot 10-32UNF



The Transducers are front-sealing. The type GP2 and GP6 have the same front sealing rings.

Accessories are available with the transducers and as spare parts from ROTEQ.

Such are Sealing Rings, Piezo Input Cable (Microdot to BNC) and Measuring cables (BNC - BNC).

We also provide Dummies (Plugs) for the GP Series of Transducers.

Installation Tool Kit with Torque Wrench for correct mounting of the Transducers and

Drilling Tool Kit for the correct machining of the Transducer Ports can be supplied.

Each transducer comes with a Calibration Certificate, 20 Sealing Rings and a Plastic Storage Box.



The GP Series of Transducers is made with Gallium Phosphate Technology.

Gallium Phosphate has some advantages against the common Quartz elements.

 Thermal stability up to 970 C

 Excellent stability of piezoelectric constant over a wide pressure range

 Twice the sensitivity of tourmaline and quartz

 No pyroelectricity

 Stable material quality due to industrial crystal growth process



Temperature Sensitivity



Pressure Sensitivity compared to Quartz





And, after some time you may want to calibrate the Transducers:

We have an advanced Calibration System to calibrate the Transducers against a Reference Transducer.

Measuring Range: up to 1000 MPa (10 000 bar)

System Accuracy: 0.2% based on reference transducer

Duration of one calibration cycle: approx. one minute



Key Benefits

  • Professional Sensors and Equipment with proven Technology
  • Special field of experience of ROTEQ Engineering Pte Ltd.
  • Full backup and support by Roteq
